●Scientific computing tools:the transformer uses advanced electric,magnetic, thermal and mechanical computing software to calculate electro-magnetic field and magnetic flux leakage distributions,to analyzewave processes, and to select reliable insulation margin, thus to guarantee product reliability.
●Reasonable structural layout: The transformer uses multilevel stepped lap helical structure to reduce the no-load losses and noise.Its core is supported by inside rods, and its winding uses cardboard tubes to enhance short circuits withstand capacity, we also uses baffle plate to direct the oil flow for reduction of winding temperature rise. Heterotypic radiators are
applied to improve the cooling centers for reduction of oil temperature rise.All internal insulating parts and metal structural parts have roundprocessed for reduction of partial discharge.
●Advanced technology: Its core is automatically cut with high precision and few burrs. It works without folding the upper yoke, with surface coated double H curing adhesive and fastened.We have vertical winding machine with digital control tension device. Its active part adopts phase-assembly technology, and the lead is wholly pre-fabricated.Automatic control of Kerosene Vapor-phase drying process is used.
●Perfect quality guarantee system: The company strictly controls the quality of products according to IS019001 standard.
●SSZ11-240000/220 transformer has passed a complete set of the National Authoritative Type Test including sudden SC test.
●To meet the client' s needs,we can provide products of other voltage ratios, Vector Groups, and rated capacities,as listed in the table.

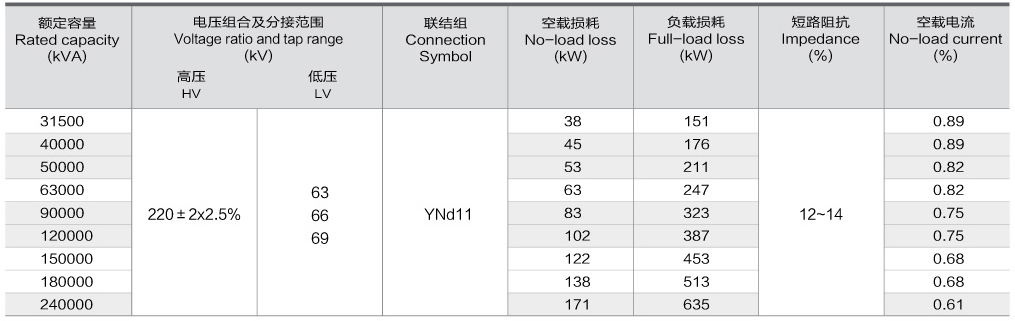

220KV Double-winding Power Transformers with off-circuit Tap Changer

220kv Double-winding Power Transformers with off-circuit Tap Changer with 66kv of Low Voltage

220KV Double-winding Power Transformers with On-load Tap-Changer

220KV Three-winding Power Transformers with off-circuit Tap Changer

220KV Three-winding Auto-transformers with off-circuit Tap Changer

220KV Three-winding Power Transformers with On-load Tap-Changer

220KV Three-winding Auto-transformers with on-load Tap-Changer
